Kensington LD4650P Single-User USB-C 10Gbps Dual 1080p Dock w/ K-Fob™ Smart Lock - 110W adapter - Windows
xOut of Stock
Contact your account manager
- LD4650P Single-User USB-C 10Gbps Dual 1080p Dock w/ K-Fob™ Smart Lock - 110W adapter - Windows
SKU #: K38400EU
EAN #: 5028252597265
UNSPSC #: 43211615
- Best for: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to 1080p
- Connection technology: USB-C Alt Mode
- USB-C power delivery: Supports USB-C PD 3.0 (60W of laptop charging)
- Compatibility: Windows 10
- No. of monitors supported: 2
- Video output: 2 x DisplayPort++
- Maximum resolution supported: Single monitor (2560 x 1440 @ 60Hz) and Dual monitors (1920 x 1080 @ 60Hz)
- Plug & play installation without need for drivers or downloads
- System requirements: Host device must support Power Delivery and DisplayPort Alt mode over USB-C
| Product colour | Black,Silver |
|---|---|
| SKU | K38400EU |
| EAN | 5028252597265 |
| Manufacturer | Kensington |
| Availability | Out of Stock |
| PDF URLs |
View PDF |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery | No |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 2560 x 1440 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Silver |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Data transfer rate | 10 Gbit/s |
| Certification | CE, FCC, IC, RCM, WEEE, REACH & IMDA |
| Cable lock slot type | Kensington |
| HD type | Full HD |
| Technical details | |
| Product colour | Black, Silver |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 1.5 A |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Output voltage | 5 - 20 V |
| Output current | 3 A |
| Software | |
| Windows operating systems supported | Yes |
| Indication | |
|---|---|
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 1.47 kg |
| Width | 320 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Package weight | 3.34 kg |
| Package width | 362 mm |
| Package depth | 320 mm |
| Package height | 83 mm |
| Design | |
| Windows operating systems supported | Yes |
| Product colour | Black, Silver |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, IC, RCM, WEEE, REACH & IMDA |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 3.34 kg |
| Package width | 362 mm |
| Package depth | 320 mm |
| Package height | 83 mm |
| Packaging content | |
| Cables included | USB |
| Certificates | |
| Certification | CE, FCC, IC, RCM, WEEE, REACH & IMDA |
| Other features | |
| USB ports quantity | 4 |
| Compatible operating systems | Windows 10 |
IT controlled access
Provides IT administrators with the benefit of master access to all stations, including those used for hot-desking, hoteling and/or shared workspaces. Also available with Single-User access (K38400EU) for a simple locking experience for fixed desk users.
Scratch-resistant bumpers
The laptop rests on cushioned bumpers along the back and base to protect it from cosmetic damage.

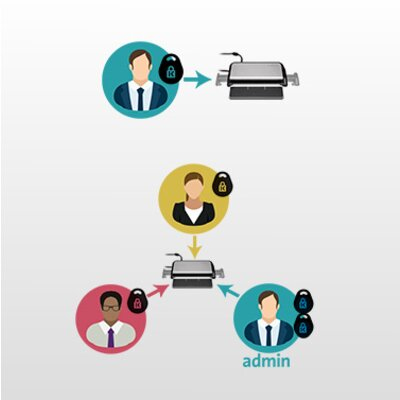

access options
Innovative access options provide the right security solution for every workspace. Choose between Single-User (K38400EU) for a simple locking experience for fixed desk users or Multi-User with Admin Control (K38401M) for hot-desking, hoteling and/or shared workspaces.
Plug & Play
Provides a seamless docking station experience for supported Windows 10 systems.
USB-C connectivity
Transfer data (up to 10Gbps), video and audio while providing up to 60W of power delivery* to USB-C enabled laptops for a simple plug and play experience. *Supported USB-C devices with PD function only

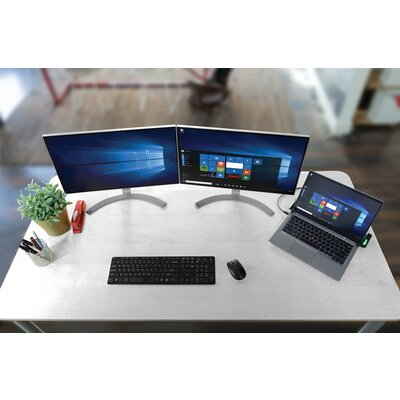

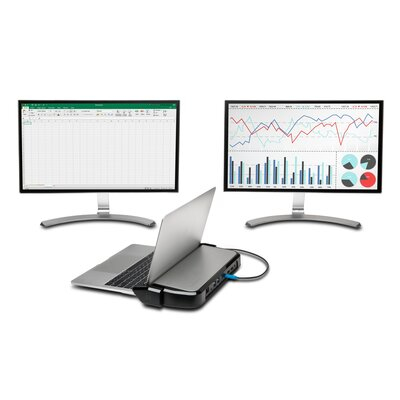

Dual 1080P video outputs**
Two DisplayPort++ ports enable video output connections to external monitors, TVs or projectors for Windows users. **Host device must support Alt mode over USB-C; only for Windows

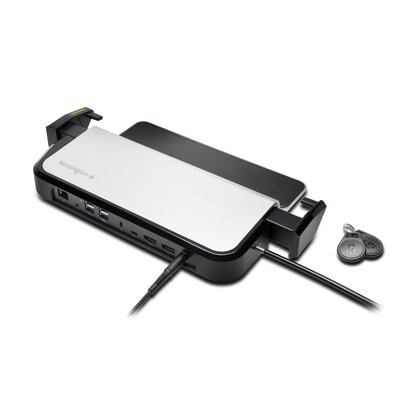

Productivity ports
Connect to peripheral accessories via two USB-A 3.1 Gen 2 ports (10Gbps;5V/0.9A), two USB-A 3.1 Gen 1 ports (5Gbps;5V/0.9A), one 1Gbps Ethernet port and a combo 3.5mm audio in/out port.
K-Fob™ Smart Lock technology
Combining encrypted security with the simplicity of keyless locking, Kensington’s K-Fob is the next generation of keying.

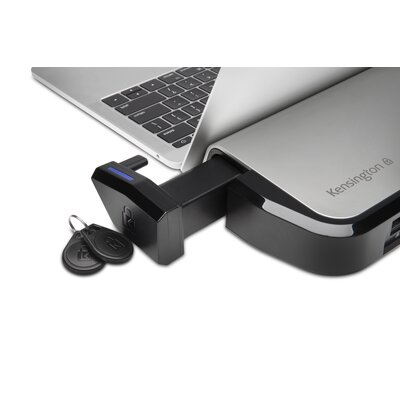

Professional locking design
Conforms to Kensington’s industry-leading testing standards for durability, reliability and tamper-resistance. Designed to provide unobstructed access to the laptop’s side ports so security doesn’t interfere with productivity. Does not require any laptop modifications.

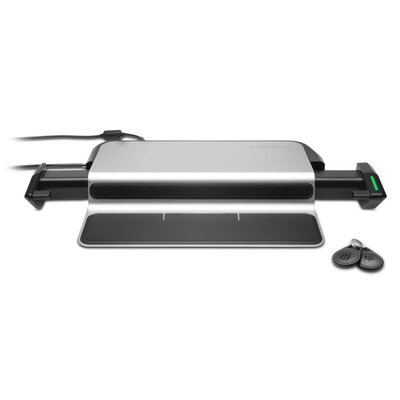

Adjustable security arms
No tools are needed to easily adjust the station to fit 11”–15” thin and light laptops.

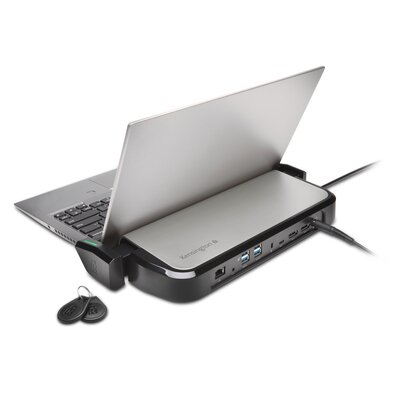

The LD4650P Single-User USB-C Dock with K-Fob™ Smart Lock combines Kensington’s thoroughly tested universal USB-C docking technology with next generation encrypted digital laptop locking technology to deliver a game-changing 2-in-1 docking and locking solution for Windows users. Get more compatibility and productivity while reducing laptop theft and improving compliance with corporate security protocols. Secures thin and light laptops 11-15” in size, including models from Dell, HP, Lenovo and other manufacturers.
Best for: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to 1080p
Warranty: 3 Years
Connection technology: USB-C Alt Mode
USB-C power delivery: Supports USB-C PD 3.0 (60W of laptop charging)
Compatibility: Windows 10
No. of monitors supported: 2
Video output: 2 x DisplayPort++
Maximum resolution supported: Single monitor (2560 x 1440 @ 60Hz) and Dual monitors (1920 x 1080 @ 60Hz)
Plug & play installation without need for drivers or downloads
System requirements: Host device must support Power Delivery and DisplayPort Alt mode over USB-C
Best for: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to 1080p
Warranty: 3 Years
Connection technology: USB-C Alt Mode
USB-C power delivery: Supports USB-C PD 3.0 (60W of laptop charging)
Compatibility: Windows 10
No. of monitors supported: 2
Video output: 2 x DisplayPort++
Maximum resolution supported: Single monitor (2560 x 1440 @ 60Hz) and Dual monitors (1920 x 1080 @ 60Hz)
Plug & play installation without need for drivers or downloads
System requirements: Host device must support Power Delivery and DisplayPort Alt mode over USB-C
