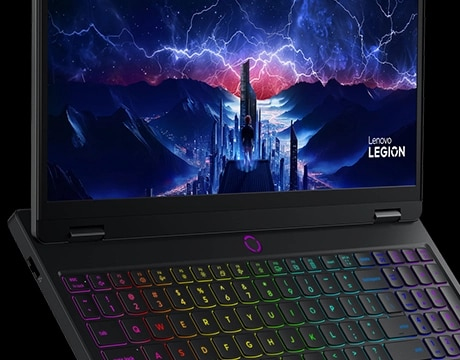

Lenovo Legion 5 15IRX10 Intel® Core™ i7 i7-13650HX Laptop 38.4 cm (15.1") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5060 Wi-Fi 7 (802.11be) Windows 11 Home English Black
xOut of Stock
Contact your account manager
- Intel Core i7-13650HX
- 14C (6P + 8E)/20T
- P-core 2.6/4.9GHz
- E-core 1.9/3.6GHz
- 24MB
SKU #: 83LY0009UK
EAN #: 0198156229380
UNSPSC #: 43211503
- Intel Core i7-13650HX, 14C (6P + 8E)/20T, P-core 2.6/4.9GHz, E-core 1.9/3.6GHz, 24MB
- 15.1" WQXGA (2560x1600) OLED 500nits glossy 100% DCI-P3 165Hz Dolby Vision DisplayHDR True Black 1000
- 2x 16GB SO-DIMM DDR5-4800
- 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
- Windows 11 Home
| Design | |
|---|---|
| Colour name | Eclipse Black |
| Product type | Laptop |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | WQXGA |
| Panel type | OLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 38.4 cm (15.1") |
| Maximum refresh rate | 165 Hz |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | i7-13650HX |
| Processor boost frequency | 4.9 GHz |
| Processor cores | 14 |
| Processor threads | 20 |
| Motherboard chipset | Intel HM770 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor base power | 55 W |
| Maximum turbo power | 157 W |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | No |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | No |
| Total storage capacity | 1 TB |
| Total SSDs capacity | 1 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 5060 |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3287 |
| Number of microphones | 2 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM770 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | 4-zone RGB |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Trial software | Office |
| Operating system installed | Windows 11 Home |
| Technical details | |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 8 GB |
| Battery | |
| Battery capacity | 80 Wh |
| Power | |
| AC adapter power | 245 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 344.9 mm |
| Depth | 255.3 mm |
| Weight | 1.9 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |
NVIDIA DLSS 4
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, features multiframe generation and enhanced super-resolution.

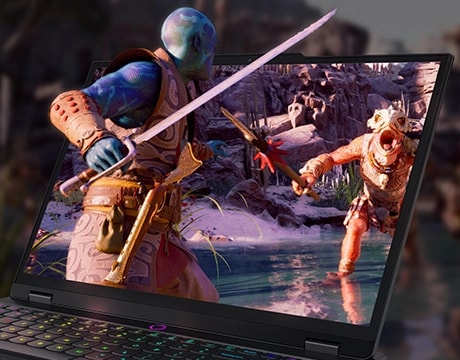

Ray Tracing
Cinematic quality visuals at unprecedented speed, enabled by 4th gen RT Cores, and breakthrough neural rendering technologies accelerated with 5th gen Tensor cores.
NVIDIA Reflex 2
Reflex 2 with Frame Warp gives you ultimate responsiveness, enhancing target acquisition, reaction time, and aim precision.

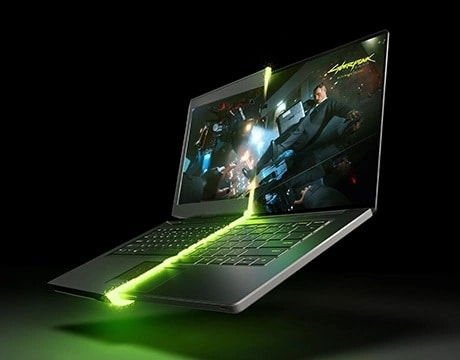

Max Q
Designed from the ground up for maximum efficiency, delivering a massive leap in performance and battery life.

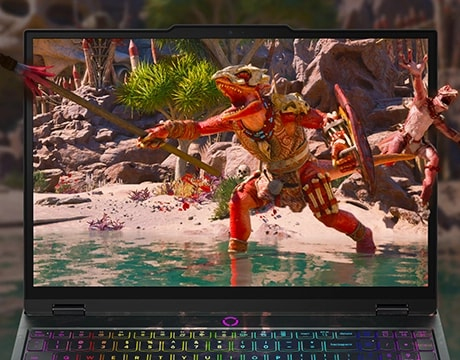

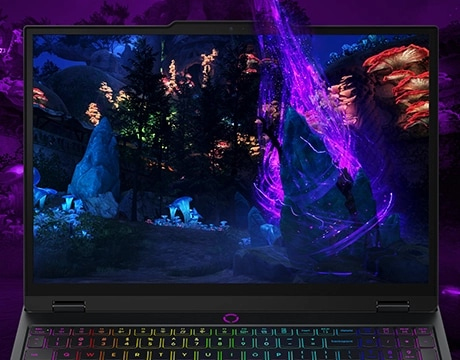

Lenovo PureSight OLED Gaming Display
Experience high fidelity AAA gaming like never before with OLED technology that delivers lower latency, impeccable color representation, and improved battery life.
Lower Latency & High Refresh Rates
Ultrafast sub-1ms response times bring smoother gaming experiences and lower latency for buttery-smooth visuals in gaming.
Smart Shift & AI Luminous Zone Technology
Deploys an AI algorithm that detects the game or app launched to lower response times, improve color reproduction, and improve panel longevity.
X-Rite Pantone®
Create color-accurate content with factory-calibrated displays.
Legion Coldfront: Hyper
A combination of turbocharged fans and massive 3D copper heatpipes, all vacuum-sealed for improved airflow with air directed away from you, Legion Coldfront: Hyper allows you to push your system further while being quieter and cooler.
Fn+Q
Effortlessly switch between Quiet, Balance, Performance, and Extreme modes with this convenient key combination to game in stealth or speed through creation or coursework.
Lenovo AI Engine+ Supported in More Modes
Expanding from Balance Mode to Performance Mode, the Lenovo AI Engine+ tunes your fan settings for an improved fan curve for sustained university projects and workloads.
Acoustic AI Sound Sync
Detects the sound energy over speakers or headphones, then adjusts fan speeds or executes a power limiter to improve overall system performance.
Eclipse Black Color
Sleek and understated, the Legion 5i is shrouded in Eclipse Black.

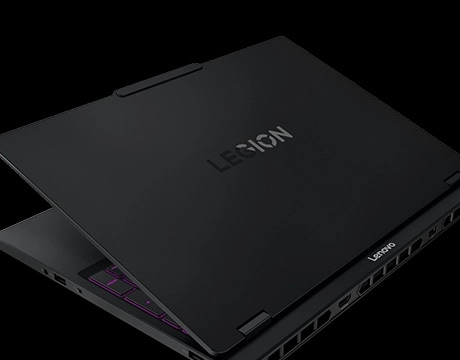

Aerospace-Grade “A” Cover
OLED models feature an aerospace-grade aluminum cover that incorporates an advanced paint injection process. This laptop uses advanced organic compounds and polymers, making it lightweight and durable.
Light Construction
Intuitive internal engineering led to a 13% reduction in weight for OLED models, perfect for taking to the library.

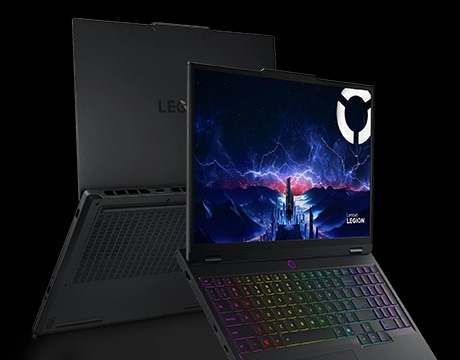

Thin Design
OLED models are 13% thinner than the previous generation and available in 15.1″. Legion 5i is thinner and more compact than ever.
5MP Camera With E-Shutter Kill Switch
Improved webcam quality and the ability to quickly disable your camera or mute yourself.
RGB Indicators
The iconic Legion symbol is lighted in RGB to indicate which performance mode your laptop is in with one quick look.

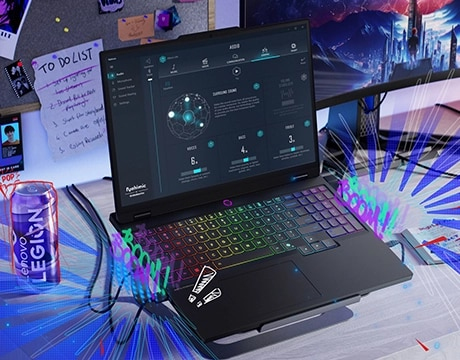

Nahimic by SteelSeries Audio for Games. AI-Powered Immersive 3D Audio.
Nahimic by SteelSeries uses AI technology to deliver immersive 3D audio and tailored sound profiles, transforming your gaming experience. Nahimic’s AI Smart Profile adjusts audio settings automatically, ensuring you’re always in the game’s sweet spot.

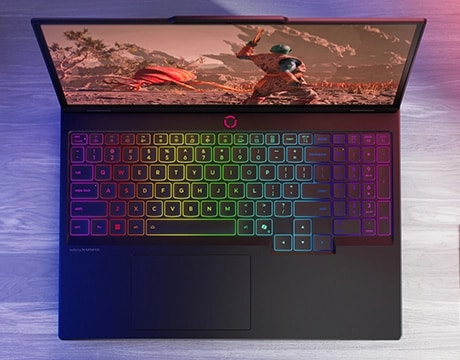

Experience What A True Gaming Keyboard Is
The Legion TrueStrike keyboard was designed for accuracy in gaming and academic work. This full-sized keyboard, with dedicated arrow keys, a number pad, and a Mylar touchpad, is perfect for high-performance workflows or gaming.

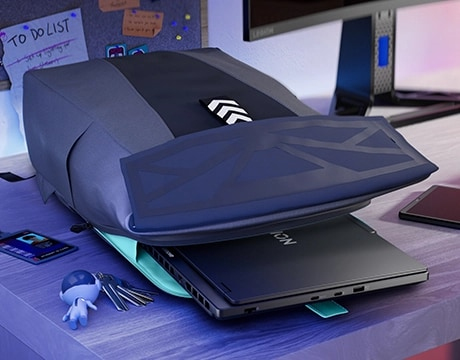

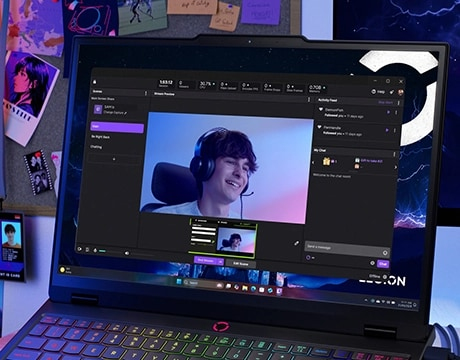

Game, Stream & Create Anywhere on Campus
From the lounge to the library, the Legion 5i offers unmatched mobility. Power-efficient hardware and fast charging take your battery from 0 to 70% in under 30 minutes. Smart battery technology ensures over 90% capacity retention for years of use.

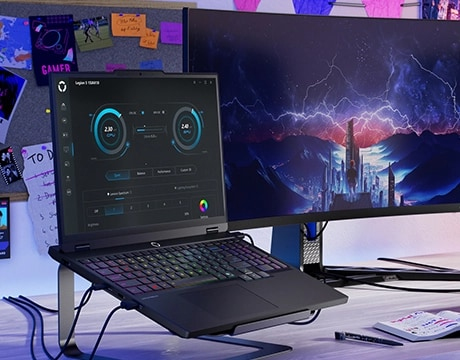

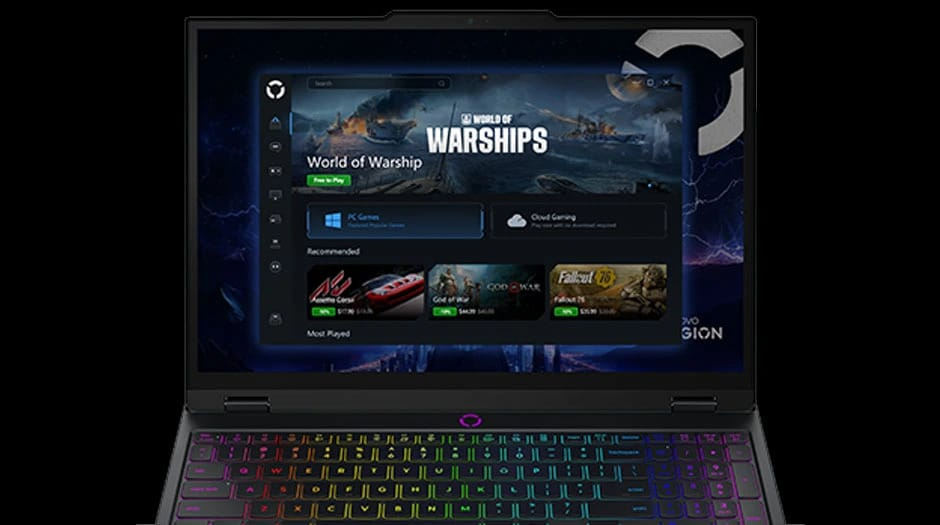

New Legion Space
Customize system settings, get exclusive deals, and more in this easy-to-use software suite.

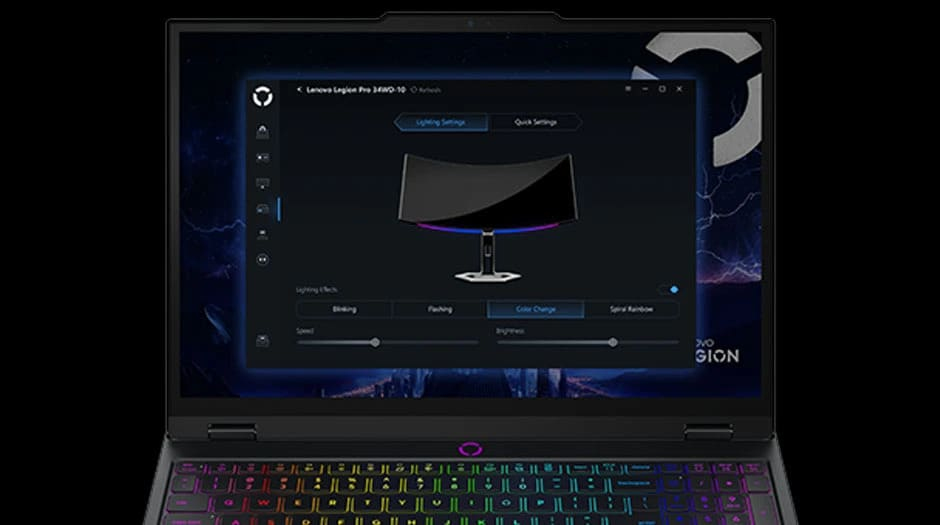

Designed For The Legion Ecosystem
Binds all your Legion ecosystem devices in one portal for effortless setup and unification of settings across your Lenovo ID.

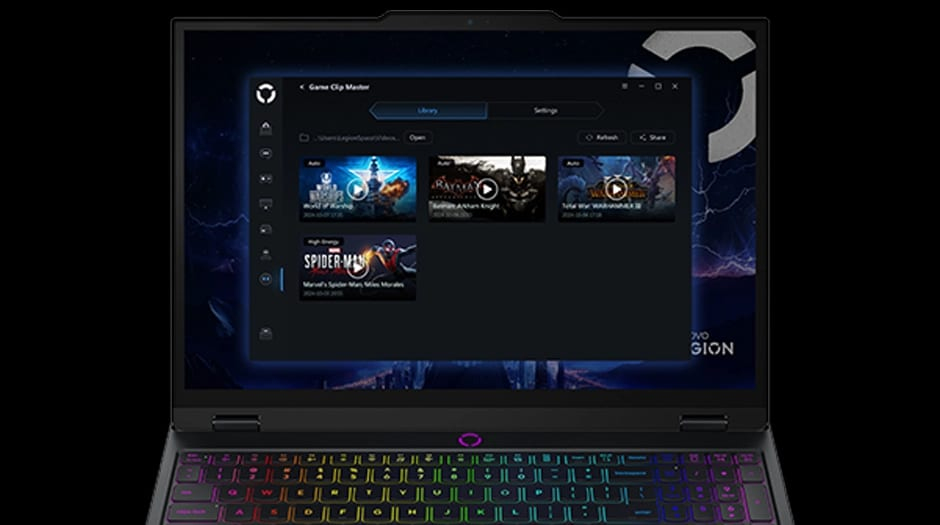

Gaming Zone
A suite of AI experiences. Game Coach for eSports, Game Clip Master for Streamers, and Game Companion for Student Gamers.
CREDIBILITY & COLLABORATION
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Explore Your Passions. Elevate Your Game.
- Uncompromised processor performance and power efficiency
- A quantum leap in graphics performance

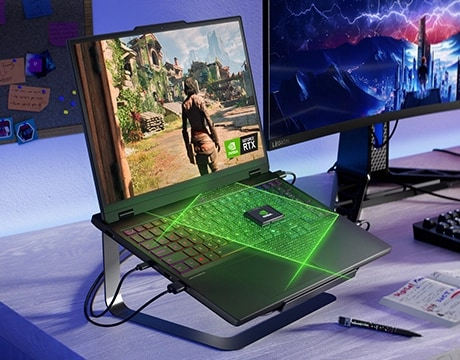

- Adaptive AI performance plus thermal innovation
- Uncompromised processor performance and power efficiency
- A quantum leap in graphics performance
- Adaptive AI performance plus thermal innovation
