Lenovo Legion Pro 7 16IAX10H Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7 (802.11be) Windows 11 Home English Black
xOut of Stock
Contact your account manager
- Intel Core Ultra 9 275HX
- 24C (8P + 16E)/24T
- Max Turbo up to 5.4GHz
- 36MB
- 2x 32GB CSODIMM DDR5-6400
SKU #: 83F5000UUK
EAN #: 0198156241870
UNSPSC #: 43211503
- Intel Core Ultra 9 275HX, 24C (8P + 16E)/24T, Max Turbo up to 5.4GHz, 36MB
- 16" WQXGA (2560x1600) OLED 500nits Glossy 100% DCI-P3 240Hz DisplayHDR True Black 1000 Dolby Vision G-SYNC Low Blue Light High Gaming Flicker Free
- 2x 32GB CSODIMM DDR5-6400
- 2x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe
- NVIDIA GeForce RTX 5090 24GB GDDR7, Boost Clock 2160MHz, TGP 175W, 1824 AI TOPS
- Windows 11 Home
| Design | |
|---|---|
| Colour name | Eclipse Black |
| Product type | Laptop |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | WQXGA |
| Display surface | Gloss |
| Panel type | OLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Maximum refresh rate | 240 Hz |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache | 36 MB |
| Processor model | 275HX |
| Processor boost frequency | 5.4 GHz |
| Processor cores | 24 |
| Processor threads | 24 |
| Motherboard chipset | Intel HM870 |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Efficient-core base frequency | 2.1 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | No |
| Total storage capacity | 2 TB |
| Total SSDs capacity | 2 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 24 GB |
| On-board graphics card family | Intel Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM870 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Trial software | Office |
| Operating system installed | Windows 11 Home |
| Technical details | |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 24 GB |
| Box contents | 4 Switchable Keycaps |
| Battery | |
| Battery capacity | 99.9 Wh |
| Power | |
| AC adapter power | 400 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 364.4 mm |
| Depth | 275.9 mm |
| Weight | 2.57 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |

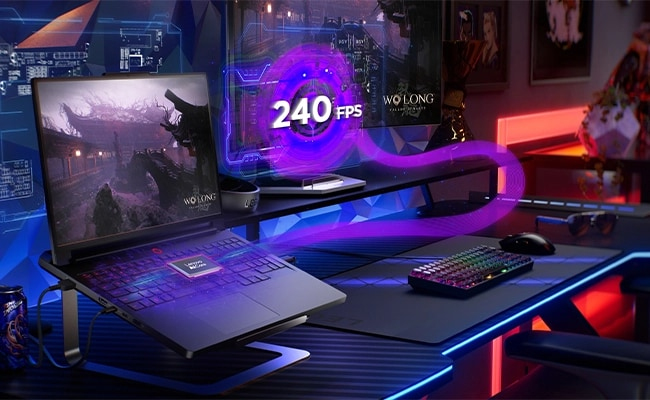

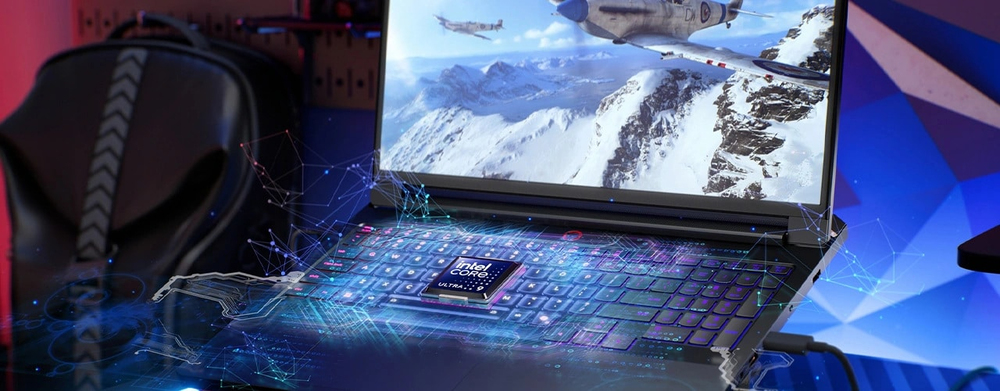

ULTIMATE PERFORMANCE FOR GAMERS
Experience next-level gaming and productivity with Intel® Core™ Ultra processors. Enjoy ultra-smooth gameplay, seamless multitasking, and AI-accelerated creative tasks. Connect all peripherals with Thunderbolt™ 4, and boost unplugged playtime with cooler, quieter performance for gaming, streaming, and creating.

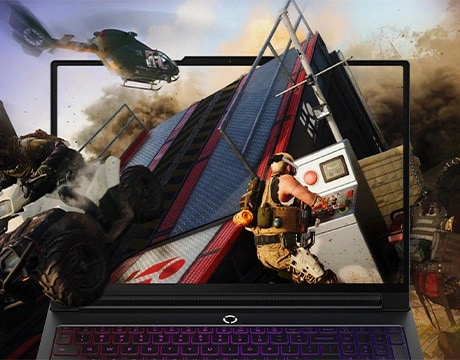

NVIDIA DLSS 4
DLSS is a suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. DLSS 4, brings Multi Frame Generation and Super Resolution, powered by GeForce RTX 50 Series GPUs and fifth-generation Tensor Cores.

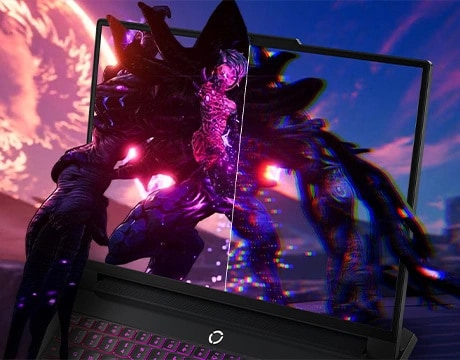

Ray Tracing
Cinematic quality visuals at unprecedented speed, enabled by 4th gen RT Cores and breakthrough neural rendering technologies accelerated with fifth generation Tensor cores.
NVIDIA Reflex 2
Reflex 2 with Frame Warp gives you the ultimate responsiveness, enhancing target acquisition, reaction time, and aim precision.

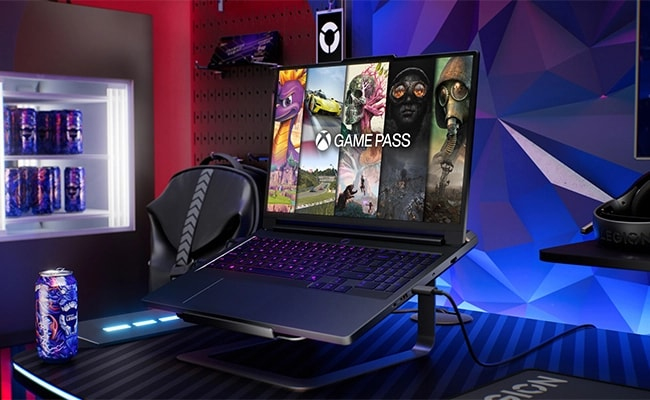

EXPANSIVE GAMING LIBRARY
Play hundreds of PC games, and day one blockbusters like Halo Infinite and Overwatch 2, with your new Lenovo Legion devices and 3 months of PC Game Pass—including EA play. With new games added all the time, there’s always something new to play.

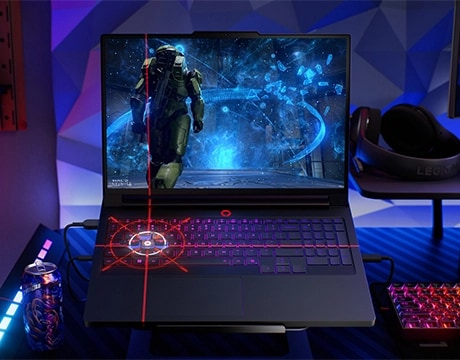

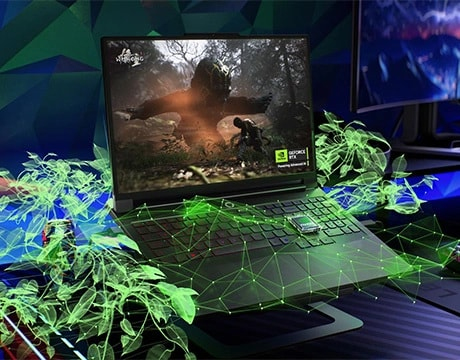

LENOVO AI ENGINE+
Lenovo AI Engine+ gives eSports grandmasters the edge to win with real-time Scenario Detection for optimized FPS and smarter resource allocation. Smart FPS ensures buttery-smooth performance and fine-tunes CPU/GPU for top tier competitive play. Drive your gameplay with AI-powered precision and dominate every moment on the battlefield.

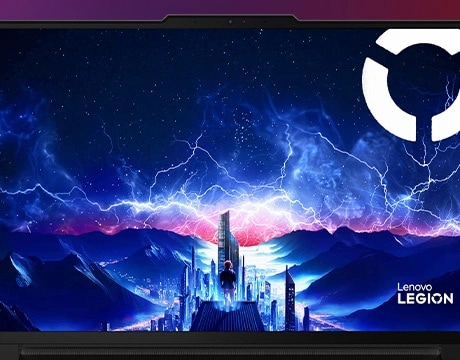

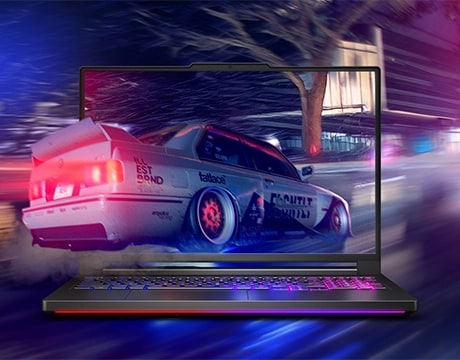

OLED Clarity
A 16" OLED display provides clarity and precision for fast-paced, eSports competition with the responsiveness of 240hz refresh rate.
Lightning-Fast Response Time & Smart FPS
Enables instant reactions and adjusts FPS for smooth, high-performance gameplay at <.5ms response times.

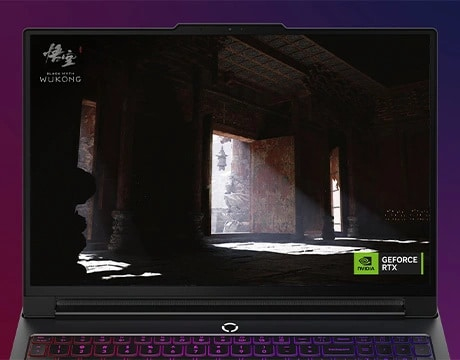

Crystal-Clear Resolution & Superior Contrast
Spot hidden opponents in dark areas for a tactical advantage in any game with improved contrast ratio 1,000,000:1 vs 1200:1 of traditional IPS panels. VESA TrueBlack 1000 delivers deeper blacks and superior contrast, while 100% DCI-P3 color accuracy ensures vibrant, true-to-life visuals.
Anti-Burn-In Technology
Prevents screen burn-in during long gaming sessions, ensuring lasting performance for those competitive marathons.

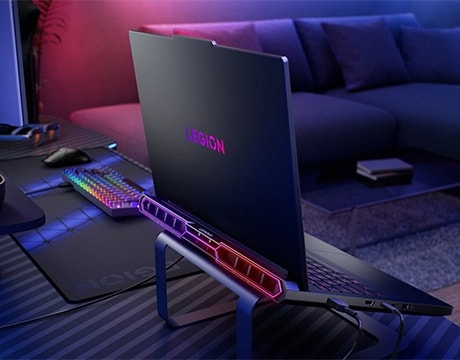

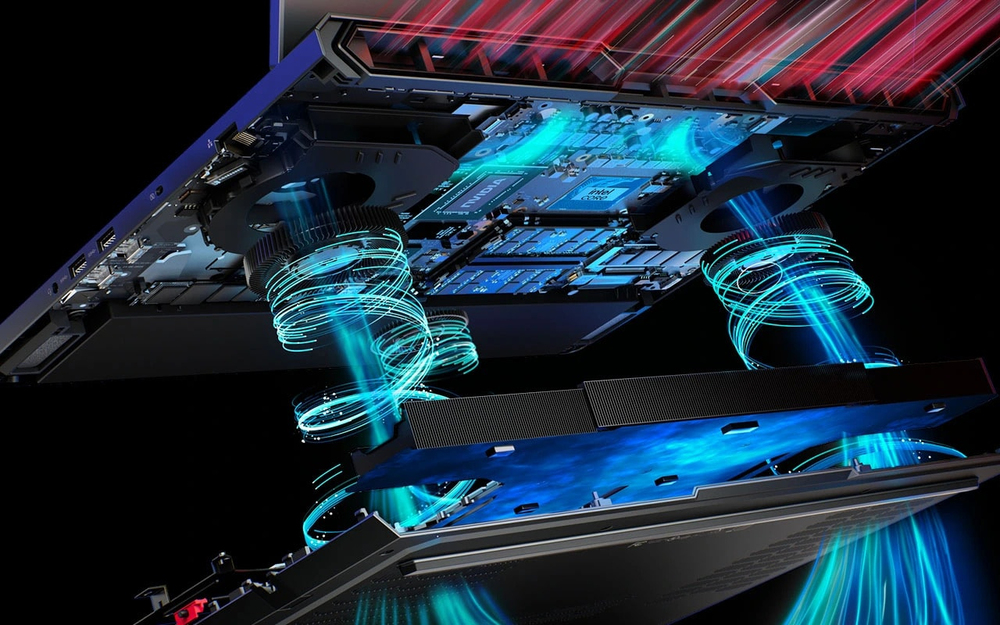

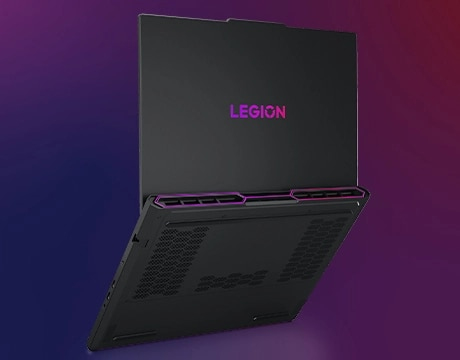

LEGION COLDFRONT: VAPOR WITH INTEGRATED HYPERCHAMBER
The Legion Pro 7i’s Coldfront technology pushes performance to the limit with a massive vapor chamber and integrated HyperChamber design, driving total TDP to 250W with an additional 15W boost. Acoustic AI adjusts fan speeds for quieter gameplay, while the optimized airflow design enhances comfort. Switch modes instantly with the Fn+Q command, and let Lenovo AI Engine+ optimize cooling and power.
Legion Coldfront: Vapor
A combination of turbo-charged fans, a massive vapor chamber, and additional vacuum-sealed hyperchamber technology pushes your system to the absolute limit of peak gaming laptop performance.

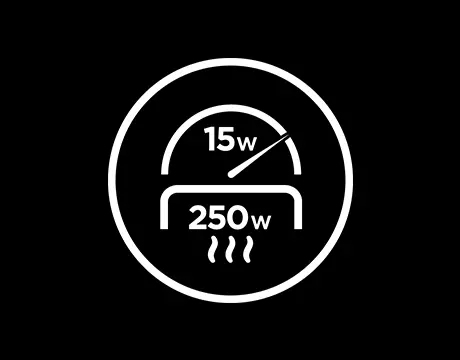

Massive Vapor Chamber with Hyper Chamber
The 250W vapor chamber delivers 15W more performance, ensuring quieter cooling and consistent gameplay without thermal throttling.

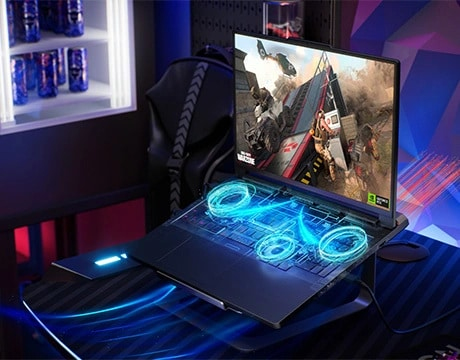

Triple TSI Fan System
Efficient airflow for maximum cooling under heavy loads, keeping your system ready for eSports-level speed.
Smart Fan System & Acoustic AI Sound Sync
Detects the sound energy over speakers or headphones then adjusts fan speeds, or executes a power limiter to improve overall system performance and lowering fan noise.
Fn+Q with Intelligent Fan Mode
Switch easily between Performance and Extreme Modes, optimizing cooling to match your gameplay and prevent overheating with additional integration of Lenovo AI Engine+ in Performance Mode.
Desktop Performance Anywhere
Full speed 2.5G ethernet, HDMI 2.1, and more make this a gaming laptop that performs more like a desktop.
Premium Aluminum Finish
Sandblasted aluminum finish provides durability and a premium feel, built for the demands of competitive gaming and commuting.
Eco-Friendly ESG Materials & Green Packaging
Constructed with sustainable materials and eco-friendly packaging, balancing top-tier performance with environmental responsibility.
Legion O Power Button
Indicated, at a glance, if you are in Balance, Performance, Quiet or Extreme modes.
Integrated Webcam with AI Sync
An AI-enhanced webcam delivers optimized video quality, perfect for streaming or team communication during gameplay.

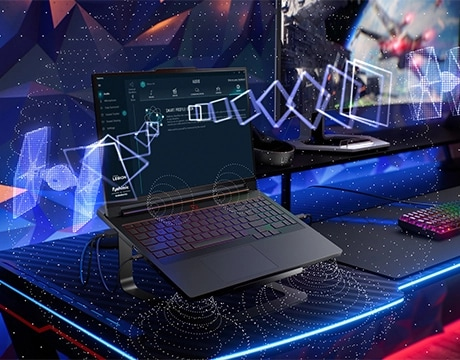

Nahimic by SteelSeries Audio for Games. AI-Powered Immersive 3D Audio.
Nahimic by SteelSeries leverages AI technology to deliver 3D audio and tailored sound profiles through four speakers, transforming your gaming experience. Nahimic’s AI Smart Profile adjusts audio settings automatically, ensuring you’re always in the game’s sweet spot.

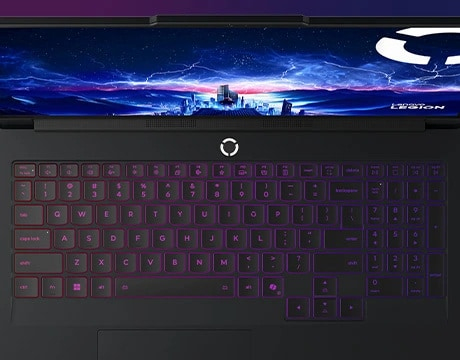

Legion TrueStrike: Intelligent Precision & Control
Master precision and dominate gameplay with the Legion TrueStrike keyboard. Built for eSports, it boasts per-key RGB lighting, Lenovo Spectrum customization, dedicated keys, and a Mylar touchpad. Sync via Legion Space and crush limits with instant responsiveness.

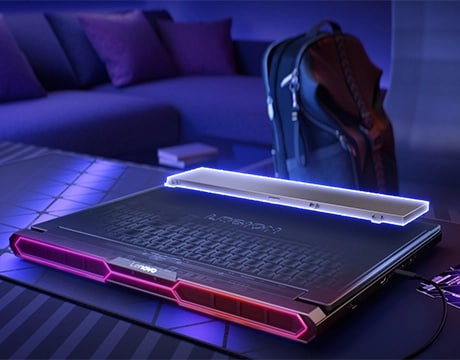

Unleash Performance Anywhere
Take your battlestation anywhere and enjoy 400W charging, 99.99Whr air travel-ready battery capacity, Super Rapid Charge tech, 140W USB-C charging, & Wi-Fi 7 for low-latency gaming. Built for performance—wherever the battle takes you.

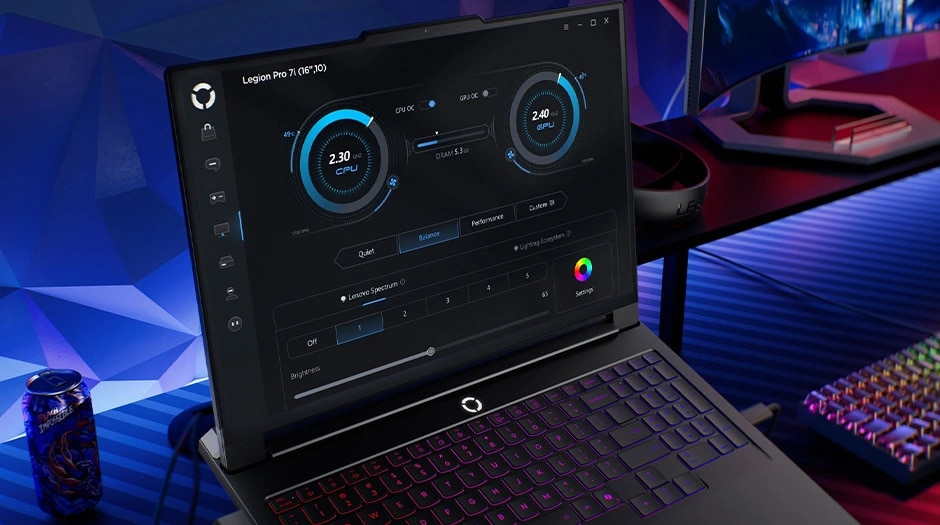

New Legion Space
Customize system settings, get exclusive deals, and more in easy-to-use software suite.

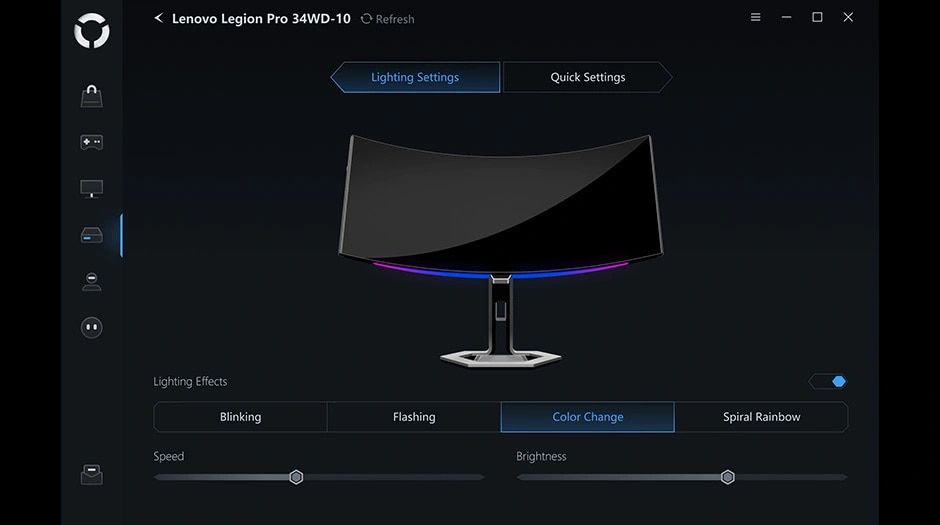

Designed For The Legion Ecosystem
Binds all your Legion ecosystem devices in one portal for effortless setup and unification of settings across your Lenovo ID.

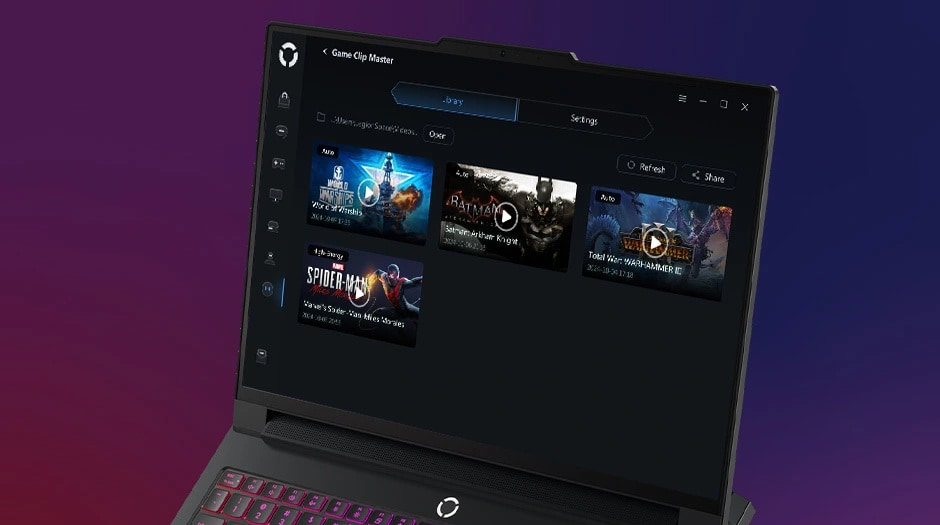

Gaming Zone
A suite of AI experiences. Game Coach for eSports, Game Clip Master for Streamers and Game Companion for Student Gamers.
CREDIBILITY & COLLABORATION
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.Learn more about our sustainability programs >
Out-Play. Out-Perform. Out-Pro.
Unlock your eSports potential with this 16″ AI-enhanced gaming laptop that’s built to keep you at the top of the rankings no matter what lobby you’re in.- Includes Intel® Core™ Ultra processors for superior performance
- Features GeForce RTX™ 50 series GPUs with NVIDIA DLSS 4
- Advanced Lenovo AI Engine+ for real-time optimizations
Unlock your eSports potential with this 16″ AI-enhanced gaming laptop that’s built to keep you at the top of the rankings no matter what lobby you’re in.- Includes Intel® Core™ Ultra processors for superior performance
- Features GeForce RTX™ 50 series GPUs with NVIDIA DLSS 4
- Advanced Lenovo AI Engine+ for real-time optimizations
| Design | |
|---|---|
| Colour name | Eclipse Black |
| Product type | Laptop |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | WQXGA |
| Display surface | Gloss |
| Panel type | OLED |
| LED backlight | Yes |
| Display brightness | 500 cd/m² |
| Touchscreen | No |
| Display resolution | 2560 x 1600 pixels |
| Display diagonal | 40.6 cm (16") |
| Maximum refresh rate | 240 Hz |
| RGB colour space | DCI-P3 |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 100% |
| Native aspect ratio | 16:10 |
| High Dynamic Range (HDR) supported | Yes |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache | 36 MB |
| Processor model | 275HX |
| Processor boost frequency | 5.4 GHz |
| Processor cores | 24 |
| Processor threads | 24 |
| Motherboard chipset | Intel HM870 |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor base power | 55 W |
| Maximum turbo power | 160 W |
| Efficient-core base frequency | 2.1 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 6400 MHz |
| Maximum internal memory | 64 GB |
| Storage | |
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | No |
| Total storage capacity | 2 TB |
| Total SSDs capacity | 2 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 24 GB |
| On-board graphics card family | Intel Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| Discrete graphics memory type | GDDR7 |
| Discrete GPU manufacturer | NVIDIA |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Camera | |
| Front camera resolution (numeric) | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| WWAN | Not installed |
| Antenna type | 2x2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Intel® Thunderbolt 4 | Yes |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM870 |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | English |
| Keyboard backlit colour | RGB |
| Keyboard backlit zone | Per-key RGB |
| Software | |
| Operating system language | English |
| Operating system architecture | 64-bit |
| Trial software | Office |
| Operating system installed | Windows 11 Home |
| Technical details | |
| Housing material | Aluminium |
| Form factor | Clamshell |
| Product colour | Black |
| Discrete graphics card memory | 24 GB |
| Box contents | 4 Switchable Keycaps |
| Battery | |
| Battery capacity | 99.9 Wh |
| Power | |
| AC adapter power | 400 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Fingerprint reader | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 5 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 364.4 mm |
| Depth | 275.9 mm |
| Weight | 2.57 kg |
| Packaging data | |
| AC adapter included | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Other features | |
| On-board graphics card | Yes |
| AC adapter included | Yes |
