DELL VEP4600
- Intel Xeon
- 8 core
- 16GB
- 240GB SSD
- 2x10GE SFP+ 4x1GbaseT
- Intel Xeon, 8 core
- 16GB, 240GB SSD
- 2x10GE SFP+ 4x1GbaseT
Design | |
---|---|
Chassis type | Rack-mounted |
Rack capacity | 1U |
Product colour | Black, Grey |
Performance | |
Processor family | Intel® Xeon® D |
Processor cores | 8 |
Internal memory | 16 GB |
Maximum internal memory | 128 GB |
Storage drive capacity | 240 GB |
Storage media | SSD |
SSD form factor | M.2 |
Maximum storage capacity | 1.92 TB |
Network | |
Wi-Fi | No |
Ethernet LAN interface type | 10 Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Management protocols | SNMPv3 |
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 6 |
10G Ethernet ports quantity | 2 |
IPMI LAN (RJ-45) port | Yes |
SFP+ module slots quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Number of redundant power supplies supported | 1 |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 85% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
Width | 434 mm |
Depth | 381 mm |
Height | 43.7 mm |
Weight | 6.34 kg |

Dell EMC VEP 4600: The 10 Best SDN Solutions Of 2018
"Doubling down on its open networking strategy, Dell EMC launched its x-86 based Virtual Edge Platform networking solution this year that uses Intel's Xeon D-2100 processor to connect the edge to the cloud." — CRN®

High-performance purpose-built uCPE (universal customer premise equipment) platform for open and disaggregated networking
The Dell EMC Networking Virtual Edge Platform 4600 is high-performance optimized to host VNFs (Virtual Network Functions) and is ideal for SD-WAN. Single-socket, 1RU platform is perfect for the service provider edge or enterprise branch. - New! Upgradable with interface or WiFi expansion cards - Accelerates packet processing with Intel® QuickAssist Technology (QAT) and security encryption with Intel® Data Plane Development Kit (DPDK) - Zero touch provisioning - Short-depth chassis design excellent for telco use cases

Validated choice
The VEP edge platform brings you simplified deployment and maximum choice with validated hardware and software options. - Hardware configurations offer choices in cores, storage and memory - Validated choice of leading SD-WAN software: VeloCloud or Versa - New! Adva Ensemble has been added to provide a hardened virtualization layer that can host a wide array of over 50 third-party VNFs, covering routing, firewall, WAN, optimization, IOT, monitoring, etc. - Investment protection with available expansion modules - Validated designs, reference architectures and bills of materials (BOMs) - Globally sold, serviced, supported and backed with Dell EMC’s best-in-class supply chain

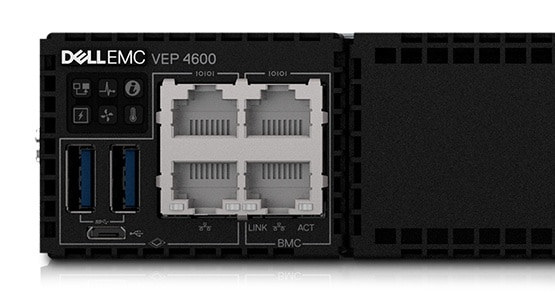

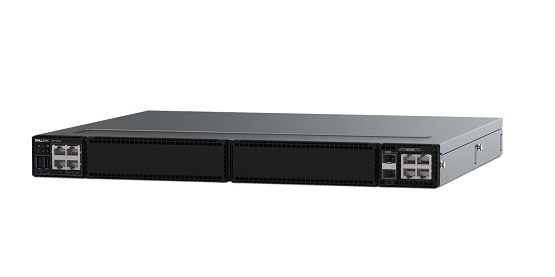

VEP4600
- Single socket 1 RU - Powered by latest network optimized Intel® Xeon® D-2100 processor - enables up to 2x packet processing and 4x memory capacity. - Packet processing accelerated with Intel® QuickAssist Technology (QAT) - Security encryption accelerated with Intel® Data Plane Development Kit (DPDK) - Upgradable with interface or WiFi expansion cards - Up to 960GB M.2 SSD - Up to DDR4 ECC 64GB RAM
High-performance purpose-built open uCPE platform to host VNFs (virtual networking functions). Ideal access platform for SD-WAN.
Design | |
---|---|
Chassis type | Rack-mounted |
Rack capacity | 1U |
Product colour | Black, Grey |
Performance | |
Processor family | Intel® Xeon® D |
Processor cores | 8 |
Internal memory | 16 GB |
Maximum internal memory | 128 GB |
Storage drive capacity | 240 GB |
Storage media | SSD |
SSD form factor | M.2 |
Maximum storage capacity | 1.92 TB |
Network | |
Wi-Fi | No |
Ethernet LAN interface type | 10 Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Management protocols | SNMPv3 |
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 6 |
10G Ethernet ports quantity | 2 |
IPMI LAN (RJ-45) port | Yes |
SFP+ module slots quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Power | |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Number of redundant power supplies supported | 1 |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 85% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
Width | 434 mm |
Depth | 381 mm |
Height | 43.7 mm |
Weight | 6.34 kg |
