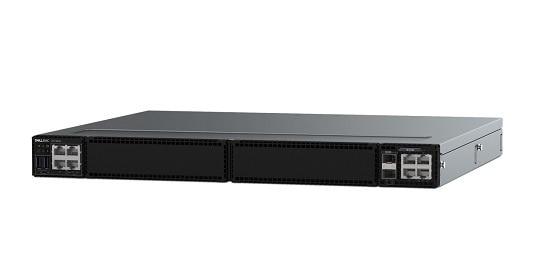

DELL VEP4600

Login for pricing
xOut of Stock
Contact your account manager
  • Intel Xeon
  • 4 core
  • 16GB
  • 128GB SSD
  • 2x10GE SFP+ 4x1GbaseT
Add to Compare
SKU #: 210-APGJ
EAN #: 5397184224649
UNSPSC #: 43222600
  • Intel Xeon, 4 core
  • 16GB, 128GB SSD
  • 2x10GE SFP+ 4x1GbaseT
More Information
Processor family Intel Xeon D
Chassis type Rack-mounted
SKU 210-APGJ
EAN 5397184224649
Manufacturer DELL
Availability N
PDF URLs View PDF
View PDF
View PDF
View PDF
View PDF
View PDF
View PDF
Design
Chassis typeRack-mounted
Rack capacity1U
Product colourBlack, Grey
Performance
Processor familyIntel® Xeon® D
Processor modelD-2100
Processor cores4
Internal memory16 GB
Maximum internal memory128 GB
Storage drive capacity128 GB
Storage mediaSSD
SSD form factorM.2
Maximum storage capacity1.92 TB
Network
Wi-FiNo
Ethernet LAN interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Management protocolsSNMPv3
Ports & interfaces
Ethernet LAN (RJ-45) ports6
10G Ethernet ports quantity2
IPMI LAN (RJ-45) portYes
SFP+ module slots quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width434 mm
Depth381 mm
Height43.7 mm
Weight6.34 kg
Dell EMC VEP 4600: The 10 Best SDN Solutions Of 2018

Dell EMC VEP 4600: The 10 Best SDN Solutions Of 2018

"Doubling down on its open networking strategy, Dell EMC launched its x-86 based Virtual Edge Platform networking solution this year that uses Intel's Xeon D-2100 processor to connect the edge to the cloud." — CRN®

High-performance purpose-built uCPE (universal customer premise equipment) platform for open and disaggregated networking

High-performance purpose-built uCPE (universal customer premise equipment) platform for open and disaggregated networking

The Dell EMC Networking Virtual Edge Platform 4600 is high-performance optimized to host VNFs (Virtual Network Functions) and is ideal for SD-WAN. Single-socket, 1RU platform is perfect for the service provider edge or enterprise branch. - New! Upgradable with interface or WiFi expansion cards - Accelerates packet processing with Intel® QuickAssist Technology (QAT) and security encryption with Intel® Data Plane Development Kit (DPDK) - Zero touch provisioning - Short-depth chassis design excellent for telco use cases

Validated choice

Validated choice

The VEP edge platform brings you simplified deployment and maximum choice with validated hardware and software options. - Hardware configurations offer choices in cores, storage and memory - Validated choice of leading SD-WAN software: VeloCloud or Versa - New! Adva Ensemble has been added to provide a hardened virtualization layer that can host a wide array of over 50 third-party VNFs, covering routing, firewall, WAN, optimization, IOT, monitoring, etc. - Investment protection with available expansion modules - Validated designs, reference architectures and bills of materials (BOMs) - Globally sold, serviced, supported and backed with Dell EMC’s best-in-class supply chain

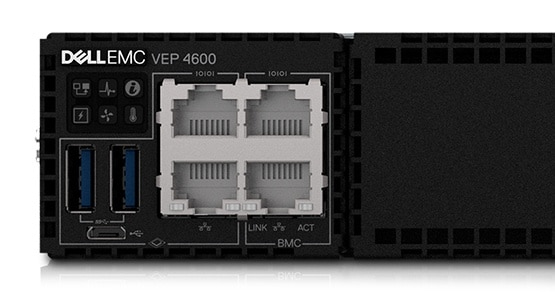

VEP4600

VEP4600

- Single socket 1 RU - Powered by latest network optimized Intel® Xeon® D-2100 processor - enables up to 2x packet processing and 4x memory capacity. - Packet processing accelerated with Intel® QuickAssist Technology (QAT) - Security encryption accelerated with Intel® Data Plane Development Kit (DPDK) - Upgradable with interface or WiFi expansion cards - Up to 960GB M.2 SSD - Up to DDR4 ECC 64GB RAM

Next generation access – High performance
High-performance purpose-built open uCPE platform to host VNFs (virtual networking functions). Ideal access platform for SD-WAN.
Design
Chassis typeRack-mounted
Rack capacity1U
Product colourBlack, Grey
Performance
Processor familyIntel® Xeon® D
Processor modelD-2100
Processor cores4
Internal memory16 GB
Maximum internal memory128 GB
Storage drive capacity128 GB
Storage mediaSSD
SSD form factorM.2
Maximum storage capacity1.92 TB
Network
Wi-FiNo
Ethernet LAN interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Management protocolsSNMPv3
Ports & interfaces
Ethernet LAN (RJ-45) ports6
10G Ethernet ports quantity2
IPMI LAN (RJ-45) portYes
SFP+ module slots quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width434 mm
Depth381 mm
Height43.7 mm
Weight6.34 kg
