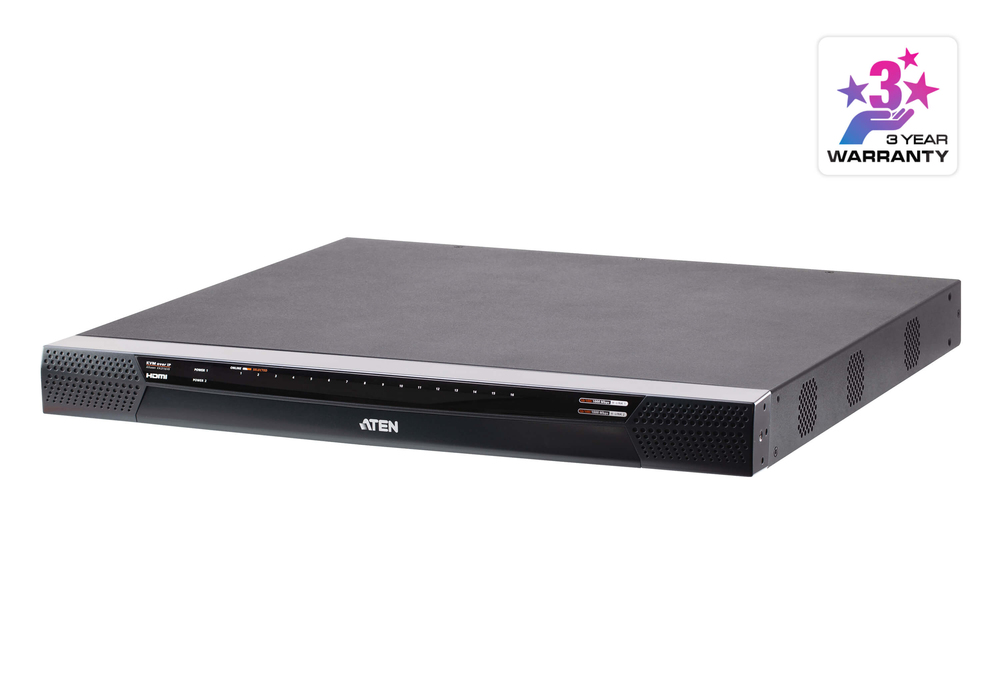

ATEN 16 Port KVM over IP switch, 2 IP users 1 Local User
xOut of Stock
Contact your account manager
- Aten 16 Port KVM over IP switch
- 2 IP users 1 Local User Multiformat
SKU #: KN2116VB
EAN #: 4710469342196
UNSPSC #: 43211601
- HTML 5 browser access and Dedicated Client software
- Virtual Media Support
- Panel Array ModeTM – monitors all ports in a grid display (both local and remote screens)
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
- Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
- Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
| SKU | KN2116VB |
|---|---|
| EAN | 4710469342196 |
| Manufacturer | Aten |
| Availability | N |
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | HDMI, VGA (D-Sub) |
| Display connection | Yes |
| USB connector type | USB Type-A |
| Serial ports quantity | 1 |
| Serial port type | RJ-45 |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | No |
| USB 2.0 Type-A hub ports quantity | 3 |
| Console HDMI ports quantity | 1 |
| Console RJ-45 ports quantity | 16 |
| AC-in ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 3 user(s) |
| Audio channels | 2.0 |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | No |
| Number of users | 3 user(s) |
| LED indicators | Operation, Power, WAN |
| Hot keys | Yes |
| IP control | Yes |
| Display connection | Yes |
| Cascadable | Yes |
| Warranty period | 3 year(s) |
| Design | |
| Display switch button | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | No |
| LED indicators | Operation, Power, WAN |
| Hot keys | Yes |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Metal |
| Country of origin | Taiwan |
| Display | |
| Built-in display | No |
| Power | |
| Power plug type | Type G |
| Power source | AC |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Features | |
| Country of origin | Taiwan |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 440 mm |
| Weight | 5.18 kg |
| Packaging content | |
| Rubber feet | Yes |
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| Connectivity technology | Wired |
| IP control | Yes |
| Warranty period | 3 year(s) |
| Push button | No |
| Hot keys | Yes |
| Logistics data | |
| Country of origin | Taiwan |
Centralised Remote Management - CC2000
The KN series can be integrated into ATEN’s CC2000 Centralized Management Software. The CC2000 delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipment with ease.
The KN series KVM over IP switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. The KN series offers superior FHD video resolution up to 1920 x 1200, virtual media transmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability of remote access to all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app - PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit the PadClient webpage for more information
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | HDMI, VGA (D-Sub) |
| Display connection | Yes |
| USB connector type | USB Type-A |
| Serial ports quantity | 1 |
| Serial port type | RJ-45 |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | No |
| USB 2.0 Type-A hub ports quantity | 3 |
| Console HDMI ports quantity | 1 |
| Console RJ-45 ports quantity | 16 |
| AC-in ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 3 user(s) |
| Audio channels | 2.0 |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | No |
| Number of users | 3 user(s) |
| LED indicators | Operation, Power, WAN |
| Hot keys | Yes |
| IP control | Yes |
| Display connection | Yes |
| Cascadable | Yes |
| Warranty period | 3 year(s) |
| Design | |
| Display switch button | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | No |
| LED indicators | Operation, Power, WAN |
| Hot keys | Yes |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Metal |
| Country of origin | Taiwan |
| Display | |
| Built-in display | No |
| Power | |
| Power plug type | Type G |
| Power source | AC |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Features | |
| Country of origin | Taiwan |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 433.6 mm |
| Depth | 412.1 mm |
| Height | 440 mm |
| Weight | 5.18 kg |
| Packaging content | |
| Rubber feet | Yes |
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| Connectivity technology | Wired |
| IP control | Yes |
| Warranty period | 3 year(s) |
| Push button | No |
| Hot keys | Yes |
| Logistics data | |
| Country of origin | Taiwan |
