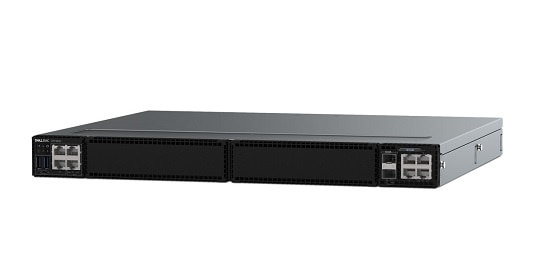

DELL VEP4600
xOut of Stock
Contact your account manager
- Intel Xeon
- 8 core
- 32GB
- 960GB SSD
- 2x10GE SFP+ 4x1GbaseT
SKU #: 210-APGU
EAN #: 5397184224663
UNSPSC #: 43222600
- Intel Xeon, 8 core
- 32GB, 960GB SSD
- 2x10GE SFP+ 4x1GbaseT
| Design | |
|---|---|
| Chassis type | Rack-mounted |
| Rack capacity | 1U |
| Product colour | Black, Grey |
| Performance | |
| Processor family | Intel® Xeon® D |
| Processor cores | 8 |
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Storage drive capacity | 960 GB |
| Storage media | SSD |
| SSD form factor | M.2 |
| Maximum storage capacity | 1.92 TB |
| Network | |
| Wi-Fi | No |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| 10G Ethernet ports quantity | 2 |
| IPMI LAN (RJ-45) port | Yes |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 434 mm |
| Depth | 381 mm |
| Height | 43.7 mm |
| Weight | 6.34 kg |
VEP4600
- Single socket 1 RU
- Powered by latest network optimized Intel® Xeon® D-2100 processor - enables up to 2x packet processing and 4x memory capacity.
- Packet processing accelerated with Intel® QuickAssist Technology (QAT)
- Security encryption accelerated with Intel® Data Plane Development Kit (DPDK)
- Upgradable with interface or WiFi expansion cards
- Up to 960GB M.2 SSD
- Up to DDR4 ECC 64GB RAM
Dell VEP 4600: The 10 Best SDN Solutions Of 2018
"Doubling down on its open networking strategy, Dell launched its x-86 based Virtual Edge Platform networking solution this year that uses Intel's Xeon D-2100 processor to connect the edge to the cloud." — CRN®
High-performance purpose-built uCPE (universal customer premise equipment) platform for open and disaggregated networking
The Dell Networking Virtual Edge Platform 4600 is high-performance optimized to host VNFs (Virtual Network Functions) and is ideal for SD-WAN. Single-socket, 1RU platform is perfect for the service provider edge or enterprise branch. - New! Upgradable with interface or WiFi expansion cards
- Accelerates packet processing with Intel® QuickAssist Technology (QAT) and security encryption with Intel® Data Plane Development Kit (DPDK)
- Zero touch provisioning
- Short-depth chassis design excellent for telco use cases
Validated choice
The VEP edge platform brings you simplified deployment and maximum choice with validated hardware and software options. - Hardware configurations offer choices in cores, storage and memory
- Validated choice of leading SD-WAN software: VeloCloud or Versa
- New! Adva Ensemble has been added to provide a hardened virtualization layer that can host a wide array of over 50 third-party VNFs, covering routing, firewall, WAN, optimization, IOT, monitoring, etc.
- Investment protection with available expansion modules
- Validated designs, reference architectures and bills of materials (BOMs)
- Globally sold, serviced, supported and backed with Dell best-in-class supply chain
Next generation access – High performance
High-performance purpose-built open uCPE platform to host VNFs (virtual networking functions). Ideal access platform for SD-WAN.
High-performance purpose-built open uCPE platform to host VNFs (virtual networking functions). Ideal access platform for SD-WAN.
