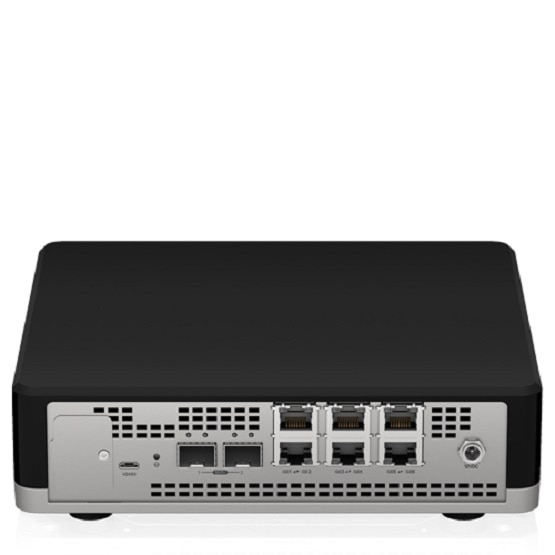

DELL VEP1445
xOut of Stock
Contact your account manager
- Intel Atom C3758 8 core
- 16GB RAM
- 16G eMMC
- 240GB SSD
- 6 x 1GbE
SKU #: 210-ASHR
EAN #: 5397184224625
UNSPSC #: 43222600
- Intel Atom C3758 8 core
- 16GB RAM, 16G eMMC, 240GB SSD
- 6 x 1GbE, 2 x 10GbE SFP+
| Processor family | Intel Atom |
|---|---|
| Chassis type | Rack-mounted |
| SKU | 210-ASHR |
| EAN | 5397184224625 |
| Manufacturer | DELL |
| Availability | Out of Stock |
| Design | |
|---|---|
| Chassis type | Rack-mounted |
| Rack capacity | 1.5U |
| Product colour | Black, Silver |
| Performance | |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3758 |
| Processor cores | 8 |
| Processor frequency | 2.2 GHz |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Storage drive capacity | 240 GB |
| Storage media | SSD |
| Intel QuickAssist Technology | Yes |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| 10G Ethernet ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 208 mm |
| Depth | 200 mm |
| Height | 52 mm |
| Weight | 1.4 kg |
High value-based uCPE
The Dell EMC Networking Virtual Edge Platform 1405 series is optimized to host VNFs (Virtual Network Functions) and is ideal for SD-WAN. The fixed form factor is perfect for the service provider edge or enterprise branch, in a deployment where high-value, low power, compactness and large number of configuration options are design considerations. - High-value fixed form factor - Compact dimensions - Intel Atom C-3000 processor, designed for low power - Quick Assist Technology (QAT) to accelerate security encryption, and Data Plane Development Kit (DPDK) to accelerate packet processing - Many configuration options, including up to 16 cores - Complements high-performance modular Virtual Edge Platform 4600
Validated choice
The VEP1405 brings you simplified deployment and maximum choice with validated hardware and software options. - Multiple hardware configurations offer choices in cores, storage and memory - Validated choice of leading SD-WAN and VNF software: Versa, Adva - Improved ordering with Dell EMC’s global world-class supply chain
High value open uCPE
High value purpose-built open fixed compact form factor uCPE platform series to host VNFs (virtual networking functions). Ideal edge platform for SD-WAN, and other VNFs.
High value purpose-built open fixed compact form factor uCPE platform series to host VNFs (virtual networking functions). Ideal edge platform for SD-WAN, and other VNFs.
| Design | |
|---|---|
| Chassis type | Rack-mounted |
| Rack capacity | 1.5U |
| Product colour | Black, Silver |
| Performance | |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3758 |
| Processor cores | 8 |
| Processor frequency | 2.2 GHz |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Storage drive capacity | 240 GB |
| Storage media | SSD |
| Intel QuickAssist Technology | Yes |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| 10G Ethernet ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 208 mm |
| Depth | 200 mm |
| Height | 52 mm |
| Weight | 1.4 kg |
